Product Description

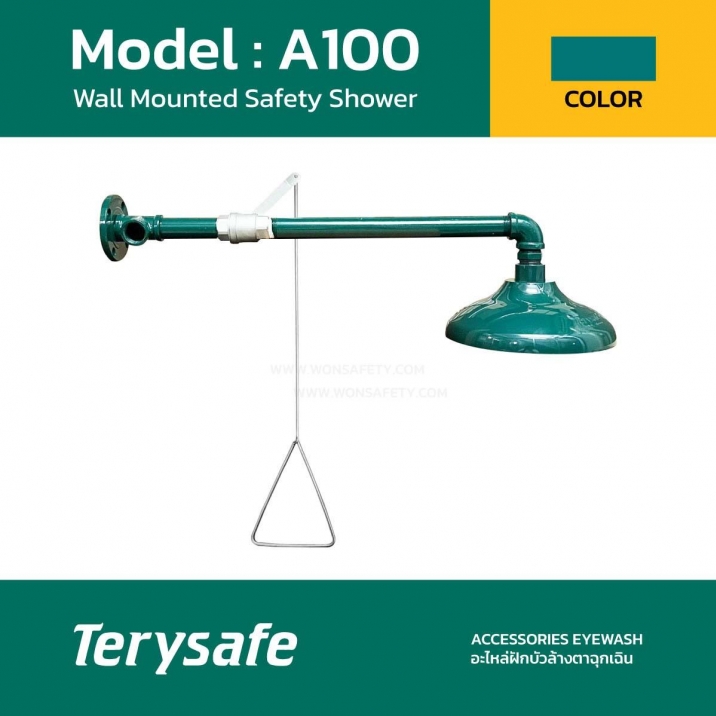

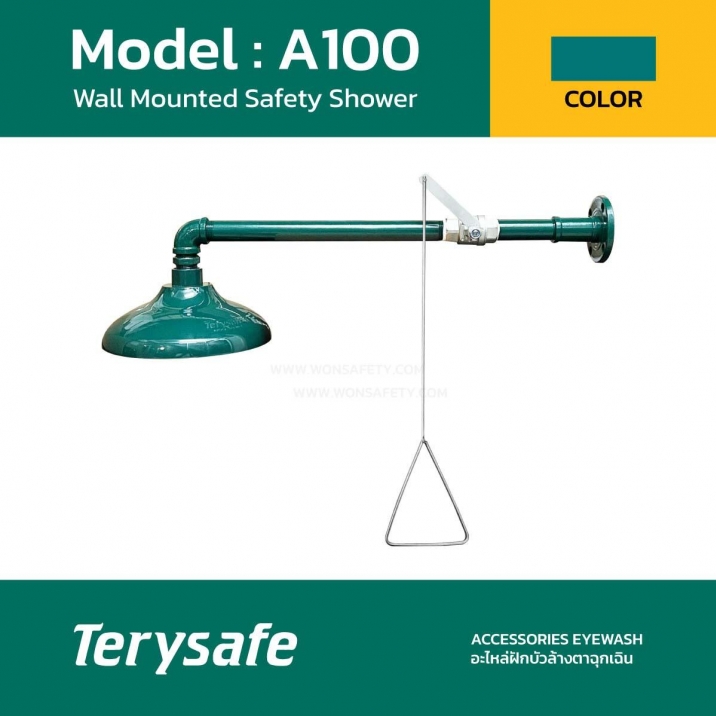

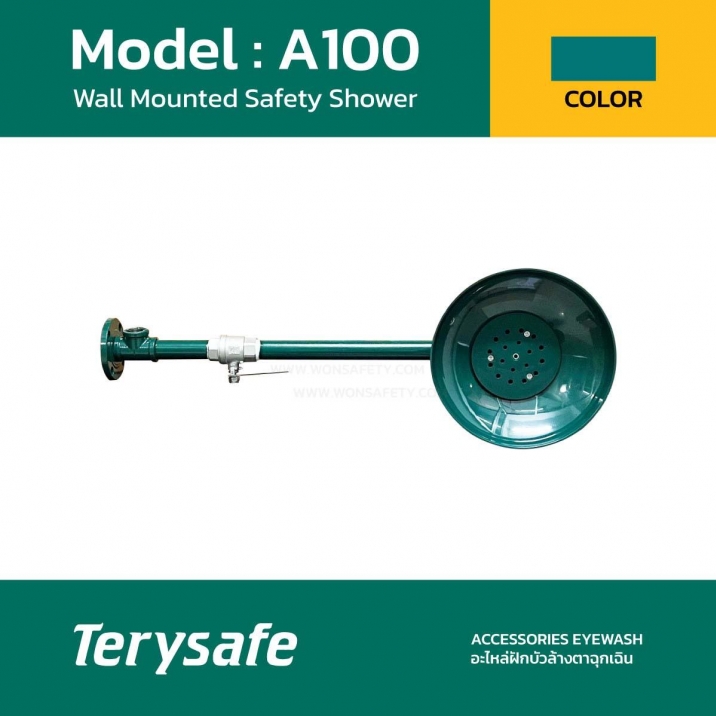

Terysafe Model: A100 Safety Shower

Application: Wall Mounted Safety Shower. To use attach to the shower head. Activated by pull rod.

Shower Head:10" diameter head provide water flow.

Shower Valve: 1" IPS chrome plated brass valve. Valve is activated by pull rod.

Pipe and Fittings: Schedule 1" and 1/4" galvanized steel.

Furnished with green polyethylene covers for vertical piping for corrosion resistance.

Supply : 1-1/4”NPT female inlet

Waste:1-1/4"NPT female outlet.

Quality Assurance: Valve and Shower head assembly is factory assembled.

Product Feature

-Connect unit to uninterruptible water supply capable. Of delivering required flow when al components are operated simultaneously.

-shower can provide 76 lites of water per minute.

-Center f the water pattern 16” from any obstructions.

-Large area cover of water flow, at 60”, the water patern cover 20” in diameter.

-Ball valve activated within one second.

-Easily located, accessible actuator no higher than 69”

-Controlled, low velocity flow completely rinses eyes and face is not injurious to user.

Product Image
